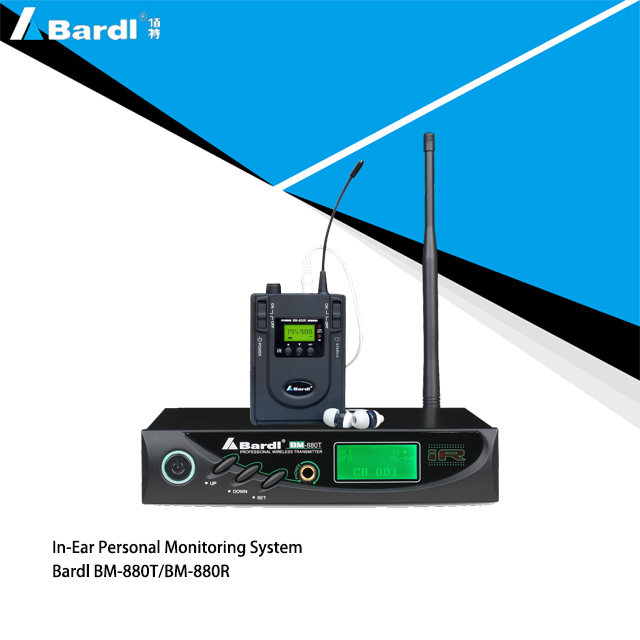

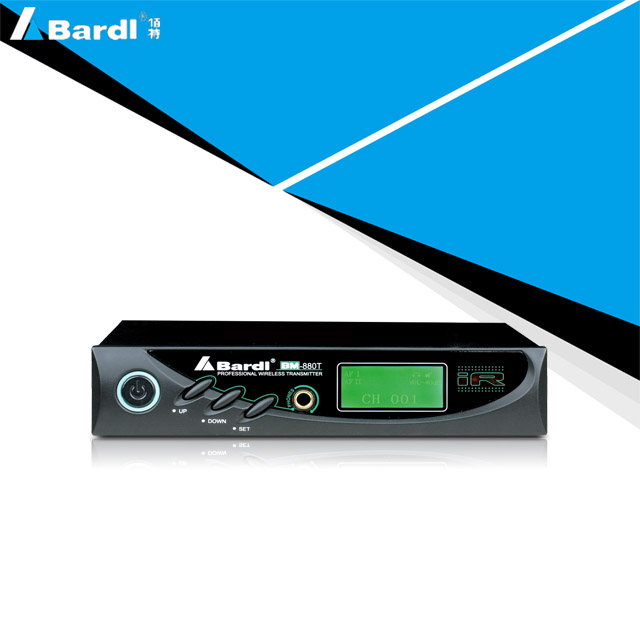

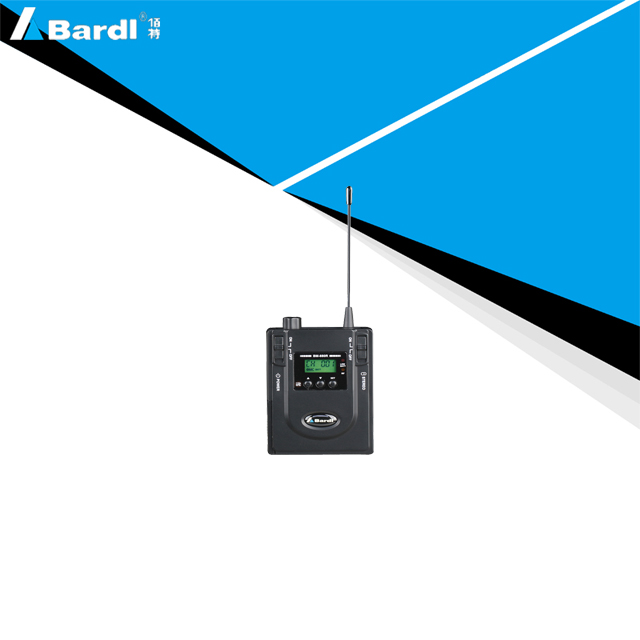

Bardl In-Ear Personal Monitoring System BM-880T/R

Bardl In-Ear Personal Monitoring System BM-880T/R

Main Features: PLL Synthesized design With 16 selectable frequencies within 24KHz bandwidth Adopting dynamic technical to expand circuit S/N ＞90dB Digital LCD channel display With RF signal and electrical source indicator Highly efficient and low power consumption circuity Build-in volume adjusting circuit to avoid the distortion Be able to connect to CD,MP3, etc

Quantity:
Availability:





Inquire Add to Basket

Model:
BM-880T/R
Brand:
Bardl

Product Description

BM-880T+R In-Ear Personal Monitoring System

Technical Specifications:

Frequency range: 760-820MHz

Band width: 24 MHz

Oscillation mode: PLL synthesized

Frequency stability: ±0.005%,0℃ to 50℃

Max deviation range: ±45KHz

Receiving Mode: Non-automaticlly

Sensitivity: 2uv, S/N＞58dB

Squelch level:Adjusting range between 2-100MV

T.H.D: ＜0.5% at 1 KHz

Max.S/N ratio: 94-100 dBA

Frequency response:50Hz-15KHz±3dB

Output jack: Φ3.5mm stereo earphone jack

Output power: (32Ω):2 * 50mW at 1 KHz (THD 3%)

Earphone Impedance: 16Ω

Power supply: AA battery

Current Consumption: 130mA (under typical operating conditions)

Continuous operating Time: 8 hours

Dimension: 88(L) * 65(W) * 23(H)mm

Weight: 105g
