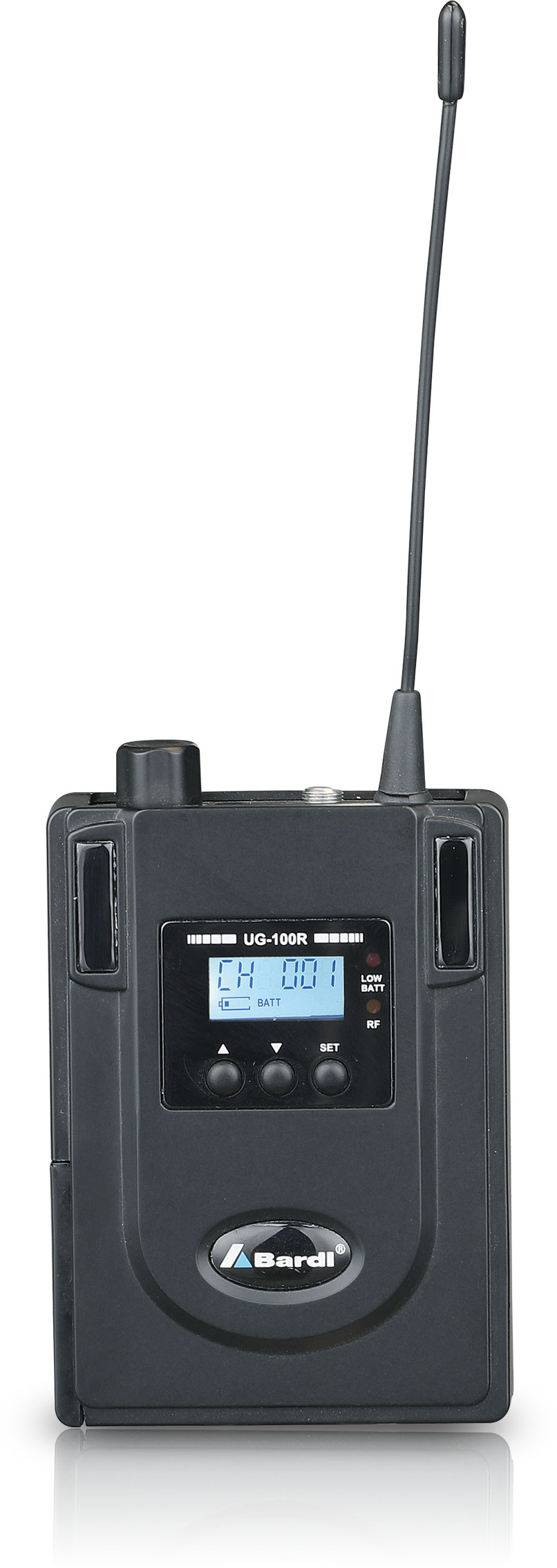

UG-100
BARDL
Technical Specifications:
Frequency range: 760-820MHz
Band width: 24 MHz
Oscillation mode: PLL synthesized
Frequency stability: ±0.005%,0℃ to 50℃
Max deviation range: ±45KHz
Receiving Mode: Non-automaticlly
Sensitivity: 2uv, S/N＞58dB
Squelch level:Adjusting range between 2-100MV
T.H.D: ＜0.5% at 1 KHz
Max.S/N ratio: 94-100 dBA
Frequency response:50Hz-15KHz±3dB
Output jack: Φ3.5mm stereo earphone jack
Output power: (32Ω):2 * 50mW at 1 KHz (THD 3%)
Earphone Impedance: 16Ω
Power supply: AA battery
Current Consumption: 130mA (under typical operating conditions)
Continuous operating Time: 8 hours
Dimension: 88(L) * 65(W) * 23(H)mm
Weight: 105g
Technical Specifications:
Frequency range: 760-820MHz
Band width: 24 MHz
Oscillation mode: PLL synthesized
Frequency stability: ±0.005%,0℃ to 50℃
Max deviation range: ±45KHz
Receiving Mode: Non-automaticlly
Sensitivity: 2uv, S/N＞58dB
Squelch level:Adjusting range between 2-100MV
T.H.D: ＜0.5% at 1 KHz
Max.S/N ratio: 94-100 dBA
Frequency response:50Hz-15KHz±3dB
Output jack: Φ3.5mm stereo earphone jack
Output power: (32Ω):2 * 50mW at 1 KHz (THD 3%)
Earphone Impedance: 16Ω
Power supply: AA battery
Current Consumption: 130mA (under typical operating conditions)
Continuous operating Time: 8 hours
Dimension: 88(L) * 65(W) * 23(H)mm
Weight: 105g
