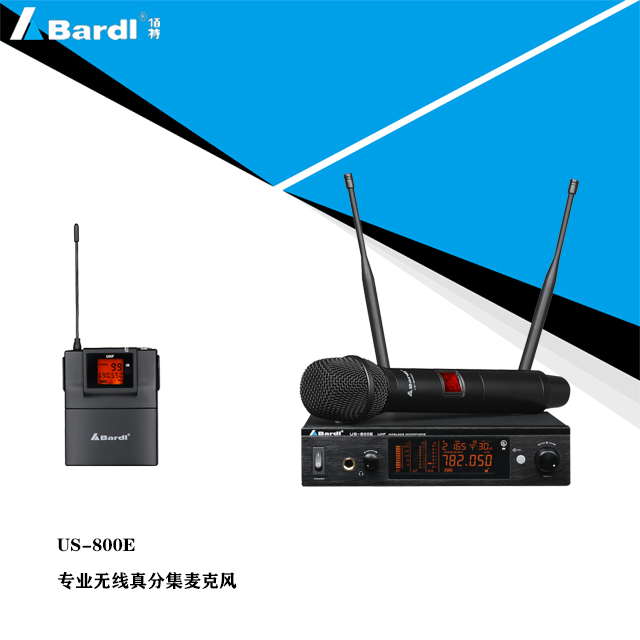

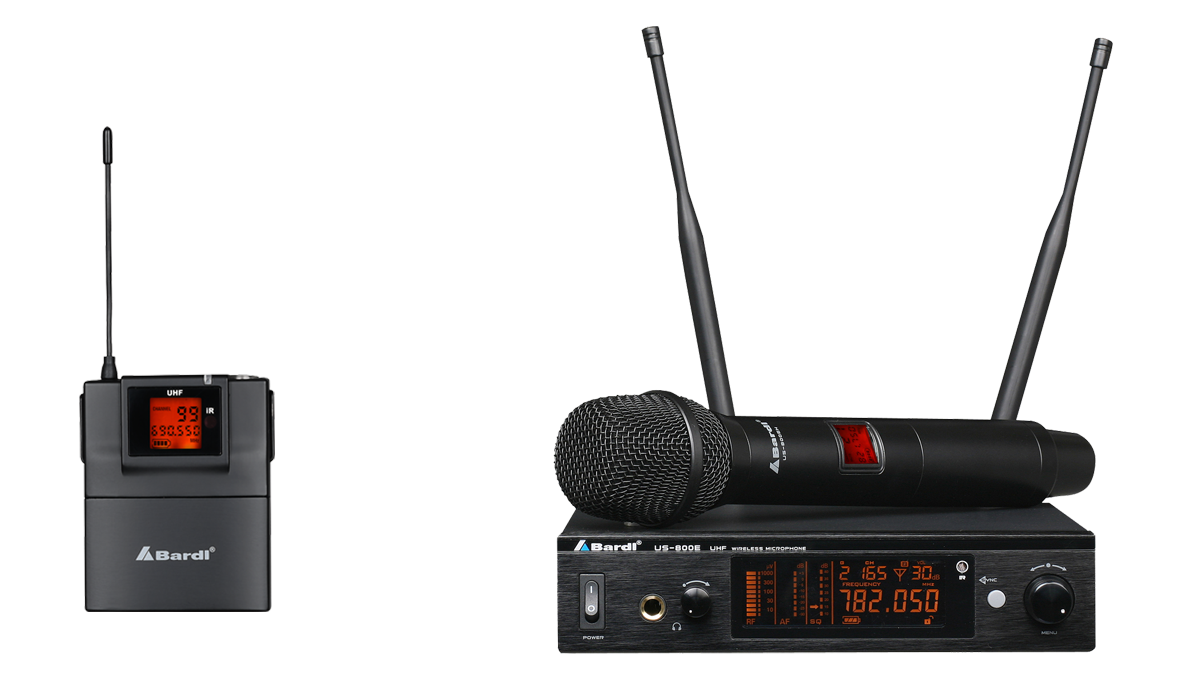

Bardl professional wireless microphone US-800E

Receiver：

  Main Frame Size: 1/2 rack unit

  Channel: 100

  Carrier Freq. Range: UHF 500-900MHz

  Frequency response: 50Hz-15KHz

  Working distance: 80m

  Frequency space: 250KHz

  Band width: 25MHz

  Carrier wave stability: ±0.002%

  Image interference ratio: ≥75dB

  Sensitivity: 10dBuV

  T.H.D(1KHz): ≤0.3%

  AF output impedance: 600Ω

Transmtter:

  Carrier Frequency Range: UHF500～900MHz

  Channel: 100

  Capsule: dynamic

  Band width: 25MHz

  Carrier wave stability: ±0.002%

  Max deviation range: ±45KHz

  Radio frequency output power: 20mV(H)/8mV(L)

  Power consumed:140mA

  Operation voltage: AA battery * 2 pcs

  Display: OLED display

  Bodypack transmiter`s input jack: 4 pins carnon jack, connect to the clip mic.or headset microphone
